High Quality 6 1/2" Tungsten Carbide Insert IADC 837 Tricone Roller Drill Bit

1 pieza
MOQ
negotiated
Precio
High Quality 6 1/2" Tungsten Carbide Insert IADC 837 Tricone Roller Drill Bit
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
tipo: pedazo tricónico del tci, mina que tamiza la malla
Solicitud: aceite, gas, pozo de agua, perforación del pozo de petróleo del diamante
Color: negro o como requisito de clientes
Formación: suave a la formación media, a la lutolita, tal como la pizarra dura, la piedra caliza suave, el etc.
Ventaja: Eficacia de alta calidad y mejor del servicio, de alta resistencia, durable y alta
Información básica
Lugar de origen: Porcelana
Nombre de la marca: GLORYTEK
Certificación: CE,SGS,TUV
Número de modelo: 6 3-4” IADC517
Pago y Envío Términos
Detalles de empaquetado: Embalaje estándar para la exportación
Tiempo de entrega: 5-7 días laborables
Condiciones de pago: LC, D/A, D/P, T/T, Western Union, MoneyGram
Capacidad de la fuente: 2000 piezas por mes
Descripción de producto
High Quality 6 1/2" Tungsten Carbide Insert IADC 837 Tricone Roller Drill Bit
Product Overview

High Strength Tricone Rock Bit 6 1/2" For Soft To Hard Formation

Product Description

Tricone drill bits have been in continuous use in the water well, oil & gas industry, and continue to be improved through ongoing innovation. We offer a comprehensive selection of tricone bits designed for every application, including tungsten carbide insert (TCI) bits and steel tooth bits for the most demanding drilling conditions.

Tricone bits deliver faster cutting speeds and extended service life across all ground conditions, particularly in varying formations. They provide higher penetration rates and superior drilling quality.

The 6 1/2" blast hole bits are engineered for drilling soft to medium hard formations with rock compressive strength. Suitable formations include shale, limestone, quartzite, slate, sandstone, and granite.

Applications
  • Very soft formations with low compressive strength and high drillability
  • Shale, clay, sandstone, gravel, and similar materials
Specifications
Bit Size API Thread Recommended Torque (KN.M)
6" (152.4 mm)3 1/2"9.5-12.2
6 1/8" (155.6 mm)3 1/2"9.5-12.2
6 1/4" (158.8 mm)3 1/2"9.5-12.2
6 1/2" (165.1 mm)3 1/2"9.5-12.2
6 5/8" (168.3 mm)3 1/2"9.5-12.2
6 3/4" (171.5 mm)3 1/2"9.5-12.2
7 1/2" (190.5 mm)4 1/2"16.3-21.7
7 5/8" (193.7 mm)4 1/2"16.3-21.7
7 7/8" (200 mm)4 1/2"16.3-21.7
8 3/8" (212.7 mm)4 1/2"16.3-21.7
8 1/2" (215.9 mm)4 1/2"16.3-21.7
8 5/8" (219.1 mm)4 1/2"16.3-21.7
8 3/4" (222.3 mm)4 1/2"16.3-21.7
9 1/2" (241.3 mm)6 5/8"38-43.4
9 5/8" (244.5 mm)6 5/8"38-43.4
9 7/8" (250.8 mm)6 5/8"38-43.4
10 1/2" (266.7 mm)6 5/8"38-43.4
10 5/8" (269.9 mm)6 5/8"38-43.4
11" (279.4 mm)6 5/8"38-43.4
11 5/8" (295.3 mm)6 5/8"38-43.4
12" (304.8 mm)6 5/8"38-43.4
12 1/4" (311.2 mm)6 5/8"38-43.4
12 5/16" (312.7 mm)6 5/8"38-43.4
12 3/8" (314.3 mm)6 5/8"38-43.4
12 7/16" (315.9 mm)6 5/8"38-43.4
12 5/8" (320.7 mm)6 5/8"38-43.4
13 1/8" (333.4 mm)6 5/8"38-43.4
13 1/2" (342.9 mm)6 5/8"38-43.4
13 5/8" (346.1 mm)6 5/8"38-43.4
13 3/4" (349.3 mm)6 5/8"38-43.4
Packaging & Shipping

Tricone drill bits for water well drilling are packaged in carton boxes. Samples are shipped by express delivery, while batch products are shipped by sea. Sample delivery typically takes 3-5 days, with batch delivery times dependent on order quantity.

Our Advantages
  • CE and SGS certified products with guaranteed quality, delivery time, and secure payment
  • 20+ years of manufacturing experience in drill bits
  • Powerful technology support and mature manufacturing expertise
  • Strict quality control procedures before delivery
  • 24-hour online customer service
  • Customized products available for special requirements
Product Images

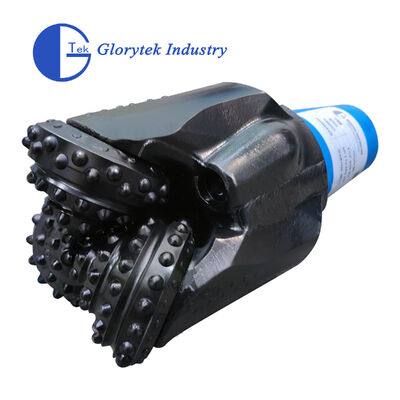

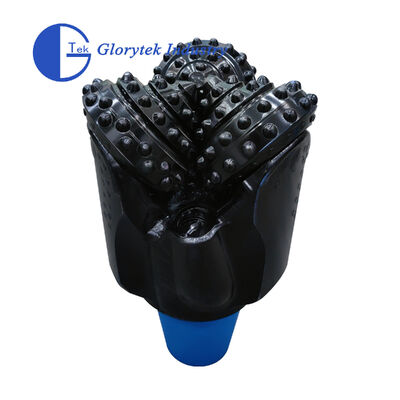

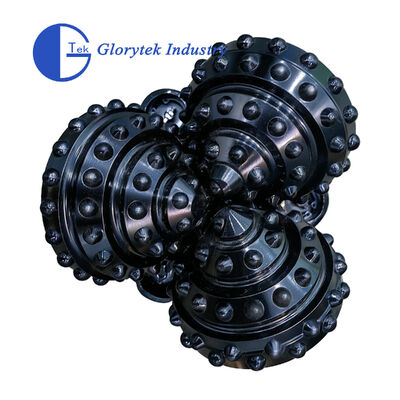

High Quality 6 1/2" Tungsten Carbide Insert IADC 837 Tricone Roller Drill Bit 0 High Quality 6 1/2" Tungsten Carbide Insert IADC 837 Tricone Roller Drill Bit 1
Company Profile
High Quality 6 1/2" Tungsten Carbide Insert IADC 837 Tricone Roller Drill Bit 2

Glorytek Industry (Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years of experience. We are supported by a highly experienced R&D team and engineers that enable us to successfully complete all assigned projects according to client requirements.

Our factory covers an area of 250,000 square meters, with construction area of approximately 150,000 square meters. We operate over 200 sets of machining machinery, CNC processing centers, friction welding machines, and testing equipment, with more than 600 employees. Our products have been exported to more than 60 countries worldwide.
