Inicio /Productos/Máquinas de perforación/GL350S Fully Hydraulic Track Mounted Water Well Borehole Drill Rig for 350m Depth Drilling

GL350S Fully Hydraulic Track Mounted Water Well Borehole Drill Rig for 350m Depth Drilling

1
MOQ
negotiable
Precio
GL350S Fully Hydraulic Track Mounted Water Well Borehole Drill Rig for 350m Depth Drilling
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Nombre: Máquinas montadas sobre orugas completamente hidráulicas de la plataforma de perforación del pozo GL
Palabra clave: Máquinas de perforación de pozos
Profundidad: 350 metros
Diámetro de perforación: 105-325m m
Presión de aire: 1.25-3.5MPa
Longitud de la varilla: 3m/6m
Diámetro de la barra de perforación: 76/89/102 mm
Fuerza de elevación: 26T
Peso de la plataforma: 8.5t
Dimensión: 5,9 mx 1,8 mx 2,3 m
Motor diésel: 90kw
Velocidad de movimiento: 2.5 km/h
Resaltar:

350m Depth Borehole Drill Rig

,

Fully Hydraulic Crawler Drill Rig

,

Track Mounted Hydraulic Drill Rig
Información básica
Lugar de origen: Porcelana
Nombre de la marca: Glorytek
Certificación: CE
Número de modelo: GL350S
Pago y Envío Términos
Detalles de empaquetado: Embalaje estándar para la exportación
Tiempo de entrega: 20 dias
Condiciones de pago: T/T, L/C, Western Union, Moneygram, D/P, D/A
Capacidad de la fuente: 40sets/month
Descripción de producto
GL350S Fully Hydraulic Crawler Type Borehole Drill Rig
Max Drilling Depth: 350m | Drilling Diameter: 105-325mm
Product Overview
The GL350S water well drilling rig features standardized configuration, compact and reasonable structure, fast drilling speed, economical durability, and low failure rate. This track-mounted borehole drill rig is widely used in mining engineering construction, civil drilling, geothermal drilling, and other fields.
Equipped with reinforced stainless steel tracks for enhanced climbing ability and easy mobility across various terrains.
Technical Specifications
Parameter Specification
Max drilling depth 350m
Drilling diameter 105-325mm
Air pressure 1.25-3.5Mpa
Air consumption 16-55m³/min
Rod length 3m/6m
Rod diameter 76/89/102mm
Main shaft pressure 6T
Lifting force 26T
Fast lifting speed 24m/min
Fast forwarding speed 50m/min
Rotary torque 9900 N.M
Rotary speed 30/170r/min
Winch lifting force 1.5T
High leg stroke 1.5m
Drilling efficiency 10-35m/h
Moving speed 2.5Km/h
Uphill angle 21°
Weight of the rig 8.5T
Dimension 5.9m x 1.8m x 2.3m
Working condition Loose layer or bedding rock
Drilling method Top Hammer Hydraulic Rotating and feeding, Down the hole hammer or mud pump drilling
Suitable hammer Medium and high pressure DTH hammer
Optional accessories Mud pump, centrifugal pump, generator, foam pump
Diesel Engine 90KW

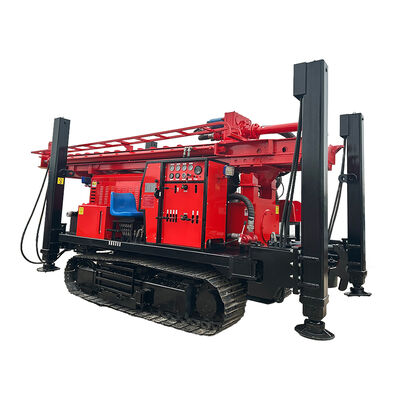

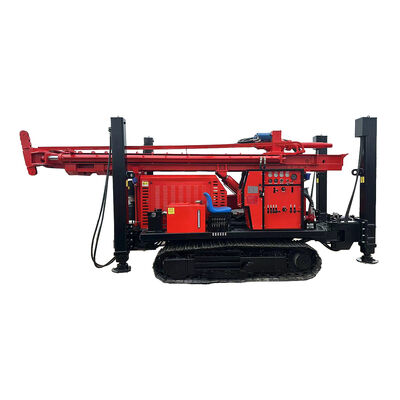

Product Images
GL350S Fully Hydraulic Track Mounted Water Well Borehole Drill Rig for 350m Depth Drilling 0 GL350S Fully Hydraulic Track Mounted Water Well Borehole Drill Rig for 350m Depth Drilling 1 GL350S Fully Hydraulic Track Mounted Water Well Borehole Drill Rig for 350m Depth Drilling 2
Manufacturer Profile
GL350S Fully Hydraulic Track Mounted Water Well Borehole Drill Rig for 350m Depth Drilling 3

Glorytek Industry (Beijing)Co.,Ltd., located in Beijing, China, is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for decades. We are supported and assisted by a highly experienced team of designers and engineers that enable us to complete all the assigned projects successfully as per the specified requirement from our clients.


Our products are widely used in the scope of mining, water well drilling and exploration, anchor grouting project, side slope protection engineering, oil and gas engineering, underwater rock drilling & blasting operations of seaport channel, hydropower project, national defense projects ect.
GL350S Fully Hydraulic Track Mounted Water Well Borehole Drill Rig for 350m Depth Drilling 4
We regularly participate in industry exhibitions to showcase our innovative drilling equipment and solutions.
GL350S Fully Hydraulic Track Mounted Water Well Borehole Drill Rig for 350m Depth Drilling 5
