Top Quality 400m Crawler Type Diesel Borehole Water Well Drill/Drilling Rig Machine

1
MOQ
negotiable
Precio
Top Quality 400m Crawler Type Diesel Borehole Water Well Drill/Drilling Rig Machine
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Nombre: Taladro/plataforma de perforación de pozo de agua tipo oruga GL400S para profundidad de perforación
Palabra clave: Equipo de perforación/perforación de pozos de agua sobre orugas
Profundidad: 400m
Diámetro de agujero: 105-350 mm
Tractor: Oruga de acero
Tamaño del transporte: los 5.4m el x 1.7m los x 2.35m
Peso de la plataforma: 9.2T
Motor diésel: Cilindros 90KW-6
Resaltar:

400m crawler diesel borehole drill rig

,

crawler type water well drilling machine

,

diesel water well drill rig

Información básica
Lugar de origen: Porcelana
Nombre de la marca: Glorytek
Certificación: CE
Número de modelo: GL400S
Pago y Envío Términos
Detalles de empaquetado: Embalaje estándar para la exportación
Tiempo de entrega: 20 días
Condiciones de pago: T/T, L/C, Western Union, MoneyGram, D/P, D/A
Capacidad de la fuente: 20s/mes
Descripción de producto

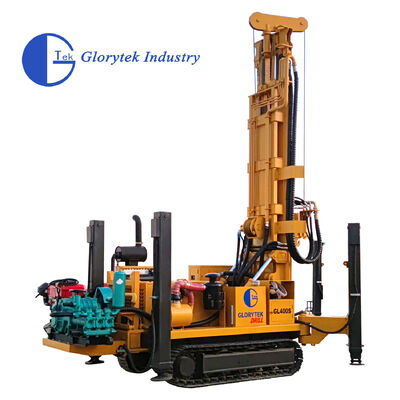

GL400S 400M Steel Crawler Water Well Borehole Drilling Rig With 92KW Diesel Engine



Description:



GL-400S drilling rig is a crawler drilling rig independently researched and developed by our company.

It is a medium-sized, efficient and multi-functional drilling equipment integrating the functions of water drilling and air drilling.

It is mainly used for core drilling of large and small diameters based on alloy bits and diamond bits, as well as well holes for engineering geological surveys, hydrology, water wells, agricultural irrigation wells and other purposes, especially suitable for water intake projects in mountainous areas and rock formations.



Tehnical Parameter:

Item
Specification
Drilling depth (m)
400
Drilling diameter(mm)
105-350
Air pressure (Mpa)
1.25-3.5
Air consumption(m³/min)
16-55
Rod length (m)
3.0 6.0
Rod diameter(mm)
φ76 φ89 φ102 φ114
Main shaft pressure (T)
6
Lifting force (T)
28
Total swing stroke(M)
6.6
 Rotary torque(N.m)
10000
Rotary speed (r/min)
30/170
Winch lifting force (T)
3
High leg stroke(M)
1.5
Moving speed(km/h)
2.5
Climbing ability(°)
21°
Weight of the rig(T)
9.2
Dimensions(M)
5.4m x 1.7m x 2.35m
Diesel engine(kw)
90KW-6 Cylinders
Working condition
Loose layer and bedrock
Drilling method
Suitable hammer
Medium and high pressure DTH hammer
Optional accessories
Mud pump,Centrifugal pump,generator, foam pump,




Related products



Top Quality 400m Crawler Type Diesel Borehole Water Well Drill/Drilling Rig Machine 0


Customer Visting

Top Quality 400m Crawler Type Diesel Borehole Water Well Drill/Drilling Rig Machine 1

Company Profile

Top Quality 400m Crawler Type Diesel Borehole Water Well Drill/Drilling Rig Machine 2

Glorytek Industry ( Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years experience. We are supported and assisted by highly experienced R & D team and engineers that enable us to complete all the assigned projects successfully as per clients’ requirements.
Glorytek Drill is one of the most important member of “Sundrill Corporation”.Our factory covers an area of 250,000 square meter, construction area is about 150,000 square meter, having machining machinery, CNC processing center, friction welding machine, testing equipment etc. over 200 sets and more than 600 employees.Our products have been exported more than 60 countries around the world.





FAQ
Q: How can we choose a suitable water well drill rig?
A: We normally recommend a suitable model according to drilling depth, drilling hole dia. and layer condition on site.


Q: Are you a factory or a trading company ?
A: We are an integrated corporation specialized in manufacturing and exporting.


Q: What is your payment terms?
A: We can accept T/T,L/C.


Q:.What is your MOQ? How long is the delivery time?
A: Our MOQ is 1 sets. Normally for drill rig, the delivery time is about 25-30 days after receiving payment, the drilling tools would be about 15 days.


Q:. How long is the warranty?
A: The guarantee period for mainframe is one year (excluding the quick wear parts).


Q: Can we print my Logo on the products?
A: Yes, we can. We support OEM .
