GL500T 500m Hydraulic Truck Mounted Water Well Drilling Rig

1 conjunto
MOQ
negotiable
Precio
GL500T 500m Hydraulic Truck Mounted Water Well Drilling Rig
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Modelo: GL500T
Tipo: equipo de perforación de pozos de agua
Diámetro de la perforación: 105-350 mm
Profundidad de perforación: 500m
Presión del aire de trabajo: 1.05-4.5Mpa
Consumo de aire: 16-60m²/min
Capacidad: 28T
Golpe de alimentación: 6600m m
Velocidad giratoria: 75-150 rpm
Esfuerzo de torsión rotatorio: 13000-15000n.m
Potencia del motor: 194kw
Peso total: 16800kg
Longitud de tubo de perforación: 3M-6M
Dimensiones: 8300x2500x3150 mm
Información básica
Lugar de origen: Porcelana
Nombre de la marca: Glorytek
Certificación: SGS, CE, TUV
Número de modelo: GL400S
Pago y Envío Términos
Detalles de empaquetado: Embalaje estándar para la exportación
Tiempo de entrega: 45 días
Condiciones de pago: T/T
Capacidad de la fuente: 20s/mes
Descripción de producto

Product Description:

 The GL500T water well drilling rig is a high-performance machine suitable for medium-to-large-scale drilling projects. Its technical specifications include a drilling diameter range of 105-350 mm, meeting drilling requirements in diverse geological conditions.

Its maximum drilling depth reaches 500 meters, making it suitable for deep well operations.

The rig operates with an air pressure of 1.05-4.5 MPa and air consumption of 16-60 cubic meters per minute.

It boasts a lifting capacity of 28 tons and a feed stroke of 6,600 mm, ensuring efficient and stable drilling operations.

 Its rotational speed is adjustable between 75 and 150 rpm, with a torque of 13,000 to 15,000 Nm. Powered by a 194 kW engine, the rig weighs 16,800 kg. Drill pipe lengths range from 3 to 6 meters, and its overall dimensions are 8,300 × 2,500 × 3,150 mm (L × W × H).

 Its overall design balances power performance with operational flexibility.

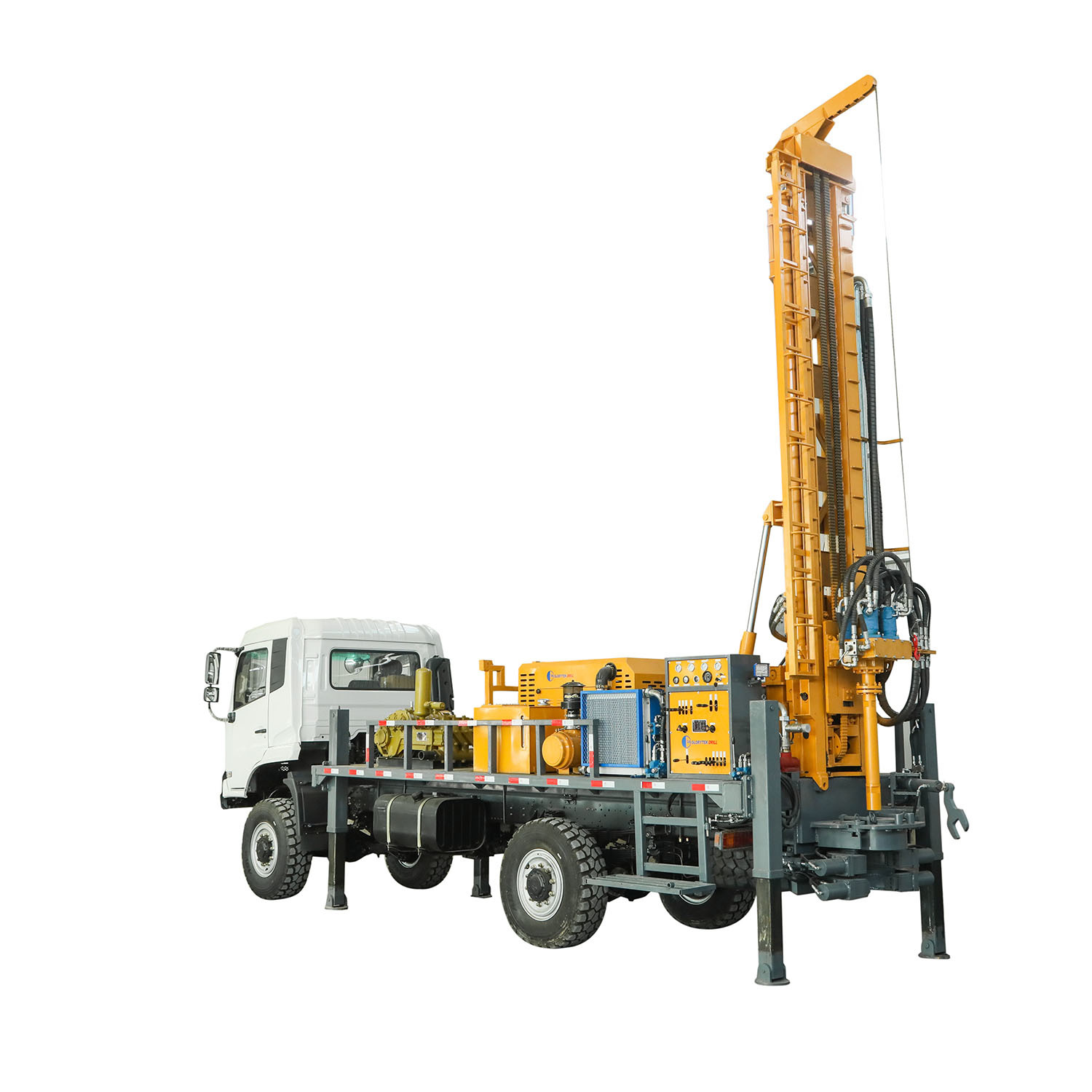

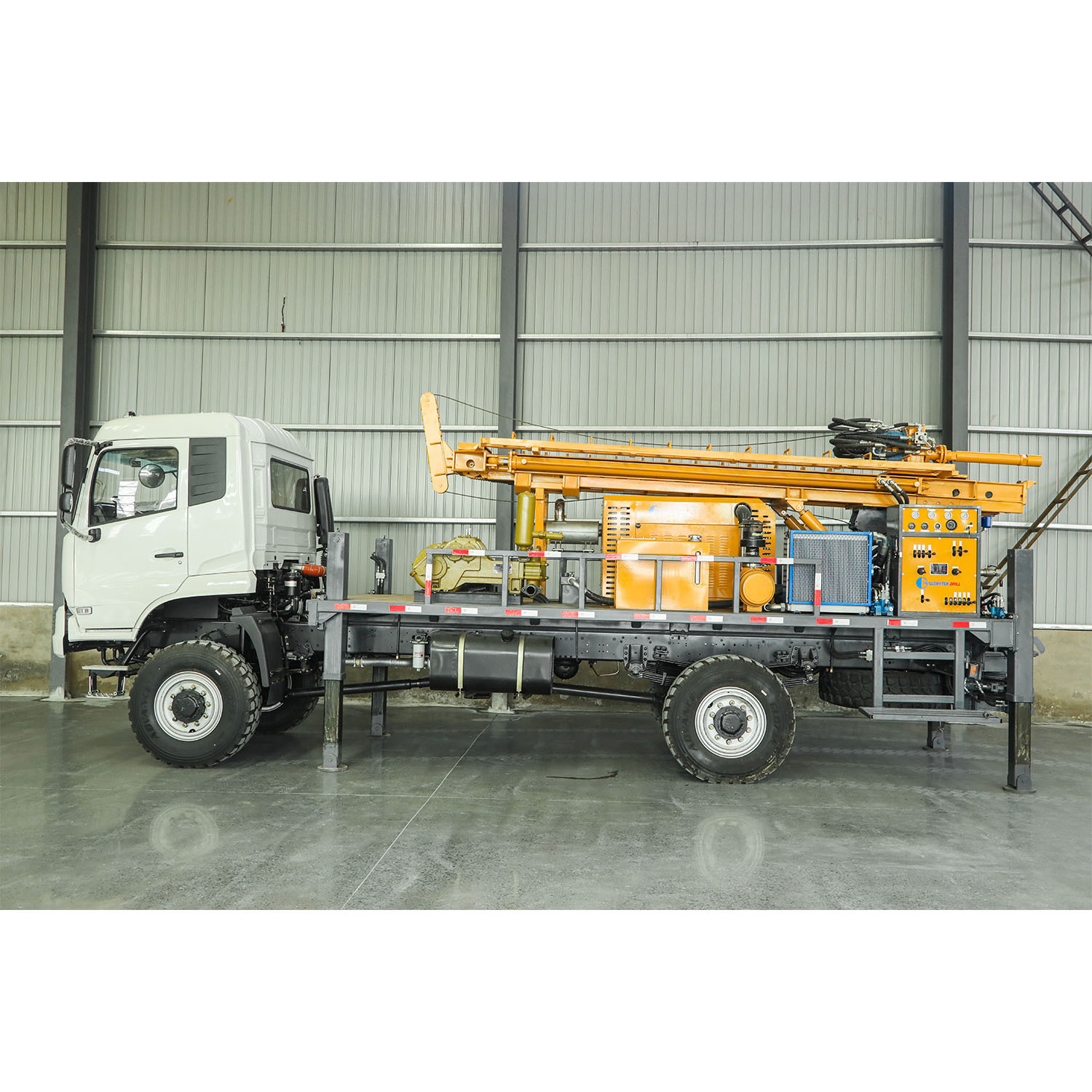

GL500T 500m Hydraulic Truck Mounted Water Well Drilling Rig 0

Model GL500T
Borehole Diameter 105-350mm
Drilling Depth 500m
Working air pressure 1.05-4.5MPa
Air Consumption 16-60m²/min
Lifting Capacity 28T
Feeding Stroke 6600mm
Rotary Speed 75-150rpm
Rotary Torque 13000-15000N.M
Engine Power 194kW
Mud Pump BW600/5
Total Weight 16800kg
Drill Pipe Length 3m-6m
Dimensions 8300x2500x3150mm


Applications:


The GL500T water well drilling rig is designed specifically for deep well drilling. With a drilling depth of 500 meters and a hole diameter range of 105-350mm, it is suitable for:

● Civilian/industrial deep water well construction (such as rural drinking water projects and mining water supply);
●  Ground-source heat pump system installation holes;
●  Hydrogeological exploration monitoring wells

●  Rock drilling: High torque of 13,000-15,000 N·m is suitable for drilling in hard rock formations (such as granite and basalt);
●  Large-scale infrastructure projects: 28-ton lifting capacity supports heavy drill pipe operations. Suitable for bridge pile foundations and high-rise building foundations.

●  Deepwater well drilling in arid areas.

●  Urban underground space exploration (subway tunnel geological survey).

●  Geothermal resource development (medium- to deep-layer geothermal well construction).

●  With a 194kW power system and a 6,600mm feed stroke, this equipment maintains efficient operation even in complex geological conditions, making it particularly suitable for projects requiring large-diameter, deep-hole drilling.



Support and Services:

We provide technical support and service for Water Well Drill Rig. Our service includes:

  • Providing technical support and consultation for product installation and commissioning.
  • Providing product operation and maintenance training.
  • Providing quick response to solve customer's problems.
  • Providing regular maintenance and inspection services.
  • Providing product upgrade services when applicable.


Packing and Shipping:

Packaging and Shipping for Water Well Drill Rig:

We will ensure the packaging materials are secure and fit for a long-distance shipment. The Water Well Drill Rig will be packed in containers.

It is normally load with 40FR container.



FAQ:

Q: What is the Brand Name of the Water Well Drill Rig?
A: The Brand Name of the Water Well Drill Rig is Glorytek.
Q: What is the Model Number of the Water Well Drill Rig?
A: The Model Number of the Water Well Drill Rig is GL400S.
Q: Where is the Water Well Drill Rig produced?
A: The Water Well Drill Rig is produced in China.
Q: What certifications does the Water Well Drill Rig have?
A: The Water Well Drill Rig is certified by SGS, CE, and TUV.
Q: How many Water Well Drill Rigs can be produced per month?
A: We can produce up to 20 sets of Water Well Drill Rigs per month.
