Core Drilling Rig for Diamond Core Geotechnical Drilling Rig

1
MOQ
32000
Precio
Core Drilling Rig for Diamond Core Geotechnical Drilling Rig
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Resaltar:

diamond core drilling rig

,

geotechnical drill rig machine

,

core drill rig with warranty
Información básica
Place of Origin: China
Nombre de la marca: Glorytek
Model Number: GDL-280
Pago y Envío Términos
Delivery Time: 30 work days
Payment Terms: T/T
Descripción de producto
Product Description

ABOUT GDL-280 DRILL RIG:
The drilling rig is a water well drilling equipment that integrates water drilling and air drilling functions. The drilling rig
adopts a vehicle-mounted 525 gearbox, which is sensitive and convenient to switch gears. The transmission efficiency is doubled
compared with hydraulic transmission, and the power consumption is reduced by 35%., which is energy efficienctly. It solves the
difficult problems of air DTH hammer drilling in soil layers and low construction efficiency of rotary drilling rigs for hard rock
layers, gravel and pebble layers.

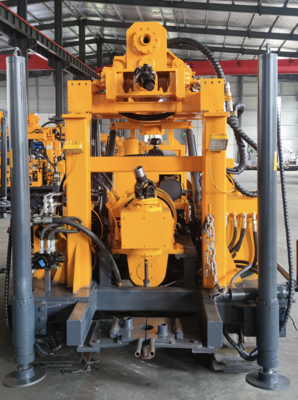

Core Drilling Rig for Diamond Core Geotechnical Drilling Rig 0

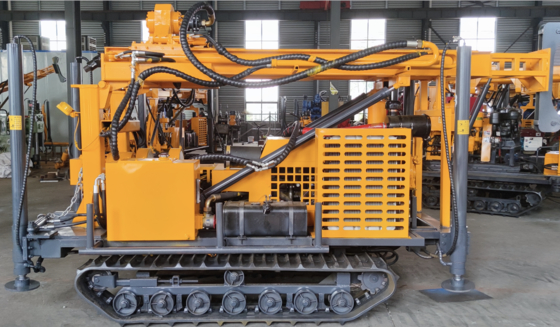

Core Drilling Rig for Diamond Core Geotechnical Drilling Rig 1

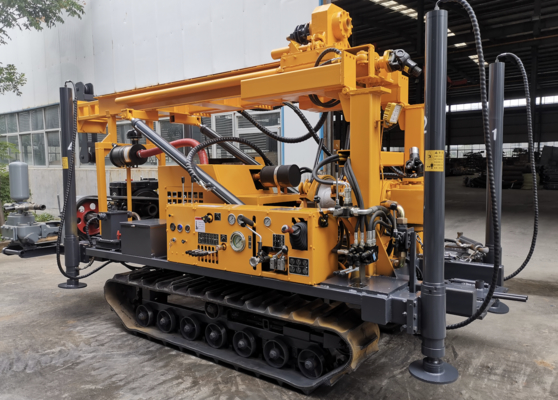

Core Drilling Rig for Diamond Core Geotechnical Drilling Rig 2
Main Specification of GDL-350 TOP DRIVE MULTIFUNCTIONAL DRILL RIG
Drilling capacity
Drilling depth for water well
200m(152mm)
Wireline coring NQ size
300m
Borehole (Drill bit) dia.
Ø75～Ø220mm
Drilling angle
90°
Drive head
Lifting capacity
100KN
Thrusting capacity
50KN
Rotary speed RPM
Forward:33,63,113,162,192/ 237,303,537,906,1120 r/min
Reverse:48/219 r/min
Max. torque
9800N.m
Power Unit
Engine Model
YN27
Rated power/speed
42KW (58KW Optional)/ (2400r/min)
Mechanical winch capacity
4.5 Ton
Drill pipe
Drill pipe dia.
Ø50/ Ø60 / Ø76/ Ø89mm NQ/ HQ /PQ
Drill pipe length
2000mm
Mud pump(optional)
BW160/ BW200/ BW250
Generator(optional)
Air lubricator (Optional)
Crawler chassis
Walking speed
0～2 km/h
Climbing angle
Max. 25°~30°
High leg stoke
1.5M
Dimension
Transport
4600*1575*2300mm
Working
3480*1600*5550mm
Weight with rubber crawler
4200kg
Weight with steel crawler
5200kg
Related Drilling Tools

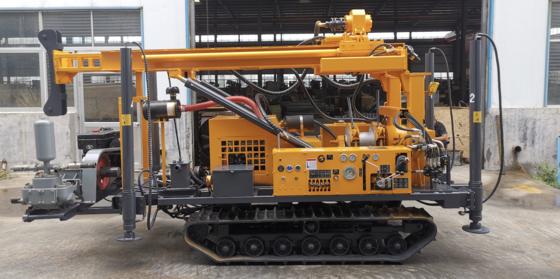

Core Drilling Rig for Diamond Core Geotechnical Drilling Rig 3
Company Profile
Core Drilling Rig for Diamond Core Geotechnical Drilling Rig 4

Glorytek Industry (Beijing)Co.,Ltd.,

located in Beijing,China, is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for decades. We are supported and assisted by a highly experienced team of designers and engineers that enable us to complete all the assigned projects successfully as per the specified requirement from our clients.

Our products are widely used in the scope of mining, water well drilling and exploration, anchor grouting project, side slope protection engineering, oil and gas engineering,underwater rock drilling & blasting operations of seaport channel, hydropower project, national defense projects ect.
Core Drilling Rig for Diamond Core Geotechnical Drilling Rig 5
Core Drilling Rig for Diamond Core Geotechnical Drilling Rig 6
Core Drilling Rig for Diamond Core Geotechnical Drilling Rig 7
Core Drilling Rig for Diamond Core Geotechnical Drilling Rig 8
Certifications
Core Drilling Rig for Diamond Core Geotechnical Drilling Rig 9
